Name: sinolift ML1500 airport Strong stability electric tow tractor
Brand: Sinolift
Price: 1 USD

Brand Name : Sinolift

Model Number : ML1500

Certification : ISO9001/ CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 Set/Month

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product name : sinolift ML1500 airport Strong stability electric tow tractor

Rated loading capacity : 3000kg

Power souce : AC Motor

Type : Electric tow tractor

Color : Red,Green,Blue,White Etc

Overall dimensions : 1490*820*1350mm

Operation Type : Stand-on

Weight : 1450kg

Battery : D-300A 24V

Lift drive / actuation : Electric Motor

After-sales service provided : Video technical support,Free spare parts

Warranty : 1 year

Contact Now

Product Description

sinolift ML1500 airport Strong stability electric tow tractor

Model		ML1500L	ML2000L	ML3000L
Rated Traction Load	kg	15000	20000	30000
Rated Traction Force	N	6000	7000	9000
Wheelbase	mm	980	980	980
Weight (including battery)	kg	1000	1200	1350
Battery Weight	kg	400	400	400
Drive Wheel Size (Diameter x Width)	mm	2XФ375X115	2XФ375X115	2XФ400X150
Load Wheel Size (Diameter x Width)	mm	Ф280X127	Ф280X127	Ф280X127
Number of Drive/Load Wheels (X = Drive Wheels)	mm	2X/1	2X/1	2X/1
Front Track, Drive End	mm	460	460	460
Overall Height	mm	1225	1225	1225
Handle Height at Operating Position	mm	950/1200	950/1200	950/1200
Coupler Height Range	mm	260/360/720	260/360/720	260/360/720
Overall Length	mm	1560	1560	1560
Overall Width	mm	1040	1040	1040
Minimum Ground Clearance	mm	100	100	100
Turning Radius	mm	1320	1320	1320
Travel Speed, Loaded/Unloaded	km/h	2~3	2~3	2~3
Maximum Traction Force	N	9000	10000	12000
Gradeability, Loaded/Unloaded	%	2月5日	2月5日	2月5日
Drive Motor Rated Power (5260 min)	V/kw	48/4.0	48/5.0	48/6.0
Charger (External)	V/A	48/30	48/30	48/30
Battery Voltage/Nominal Capacity (K20)	V/Ah	48/210	48/210	48/210
Battery Weight	kg	400	400	400
Drive Control Type		AC	AC	AC
Noise Level	dB(A)	<70	<70	<70

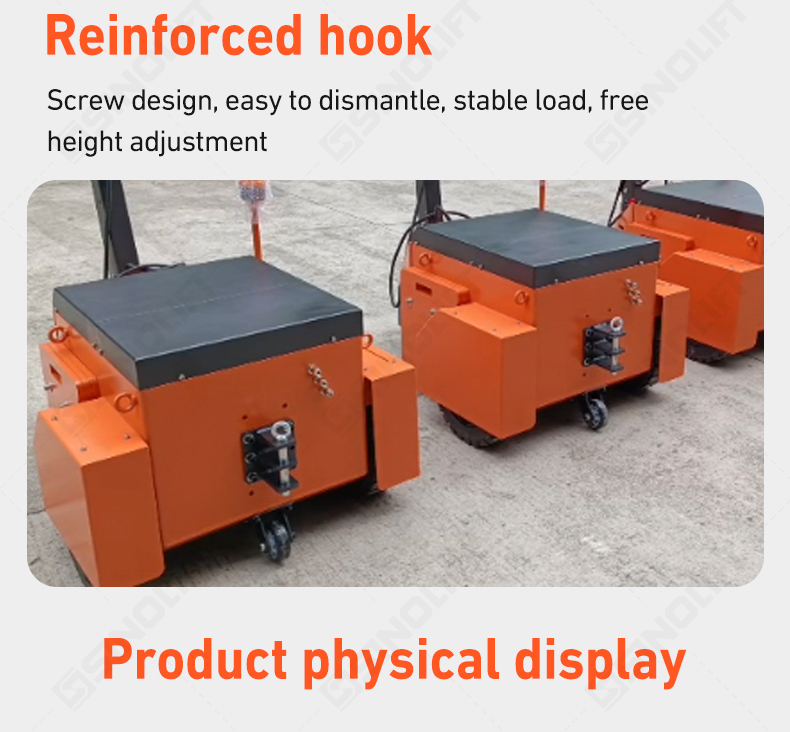

Detailed Images

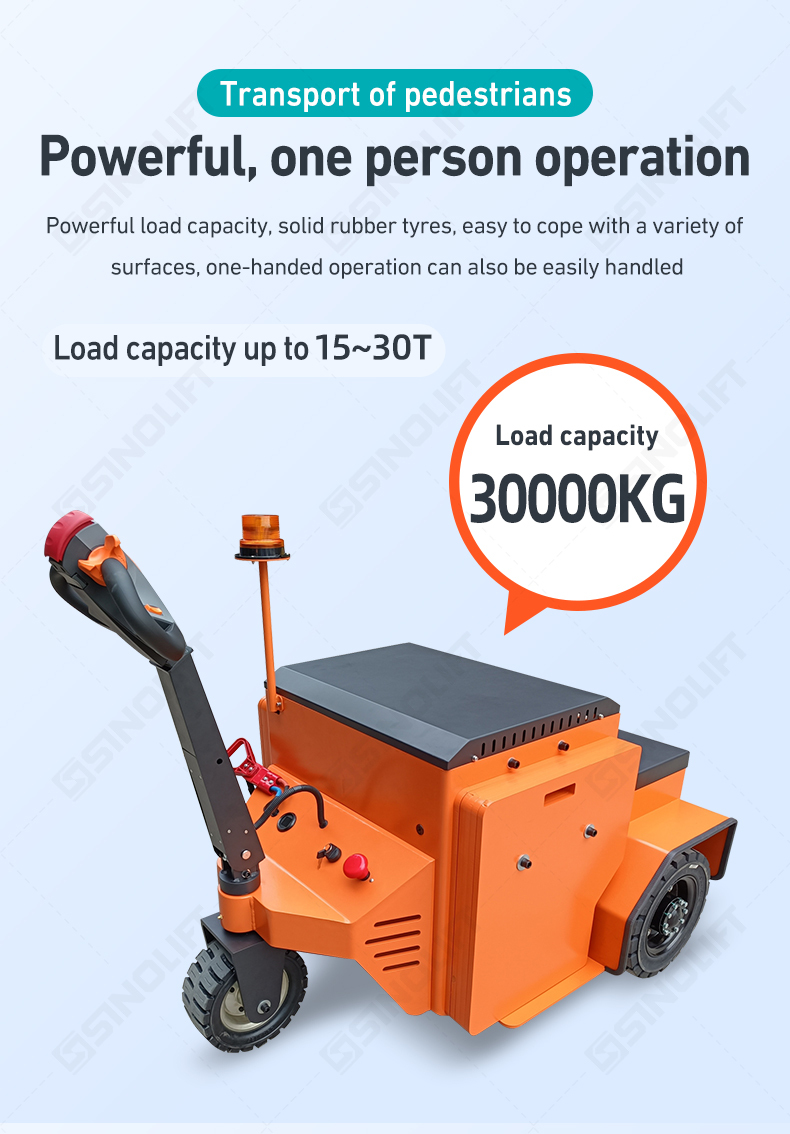

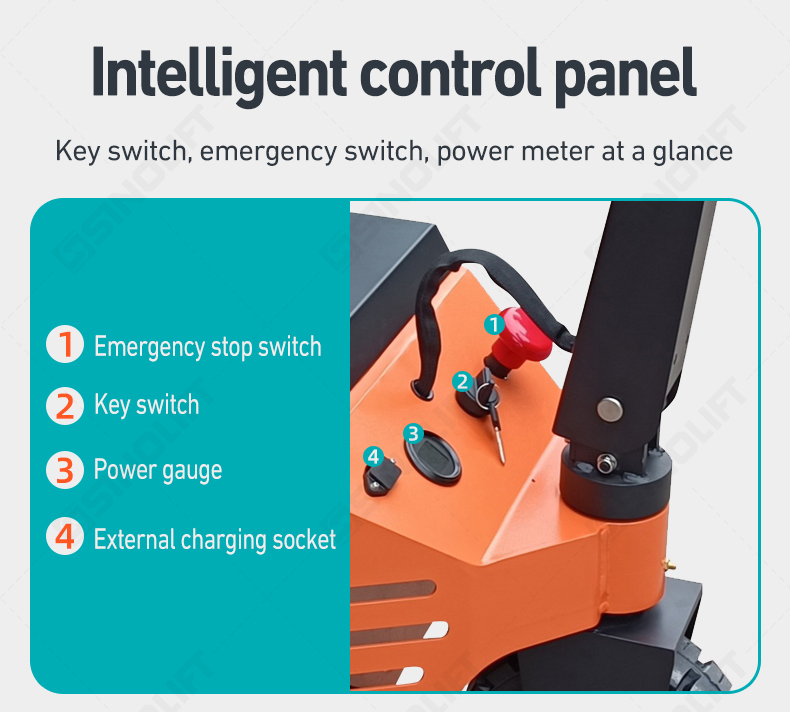

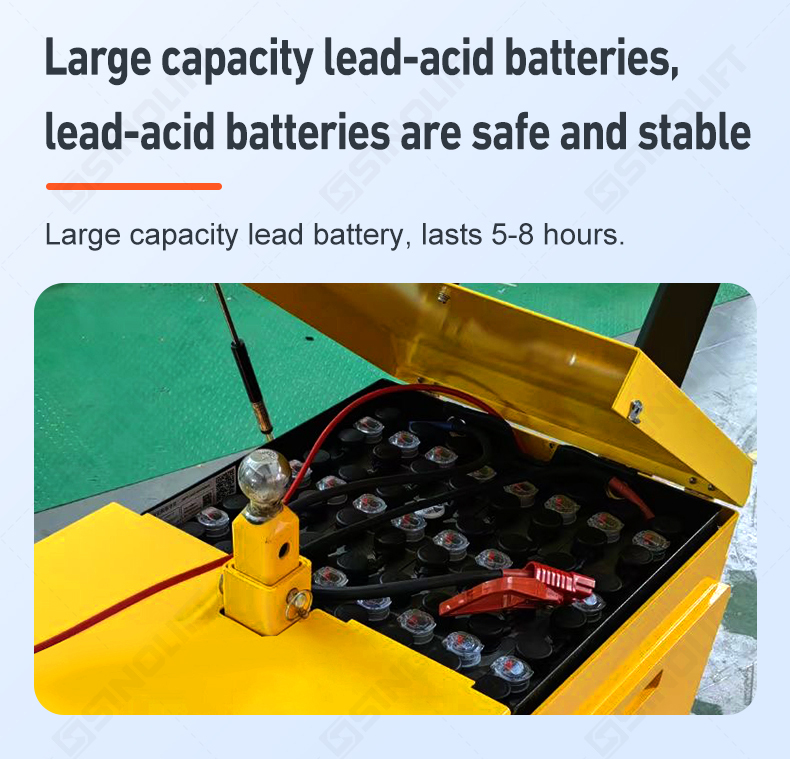

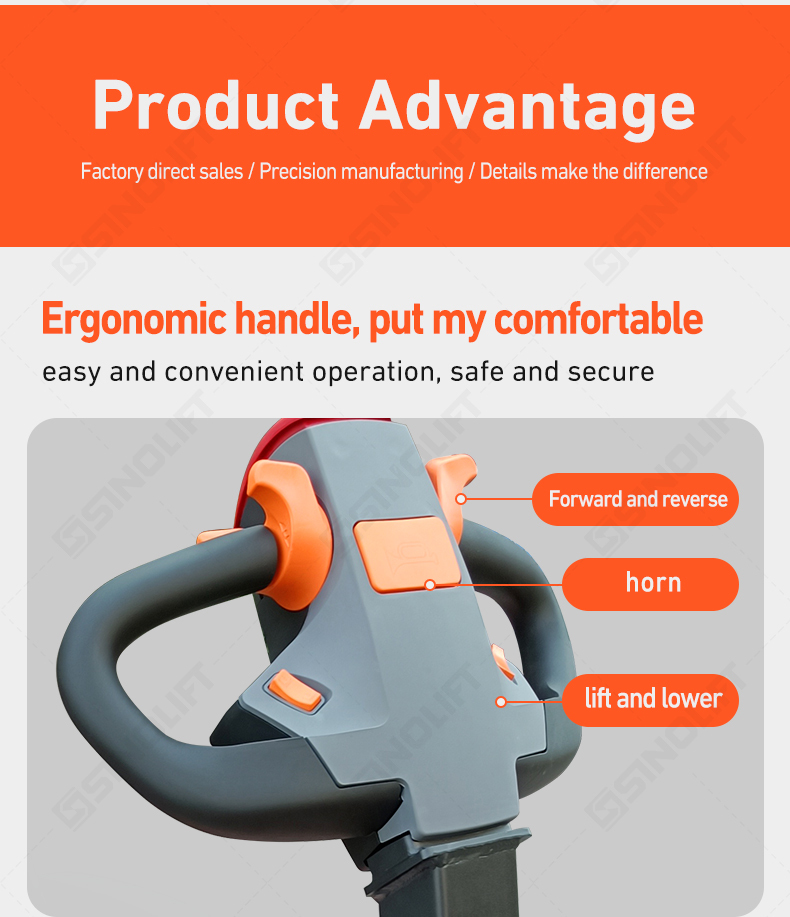

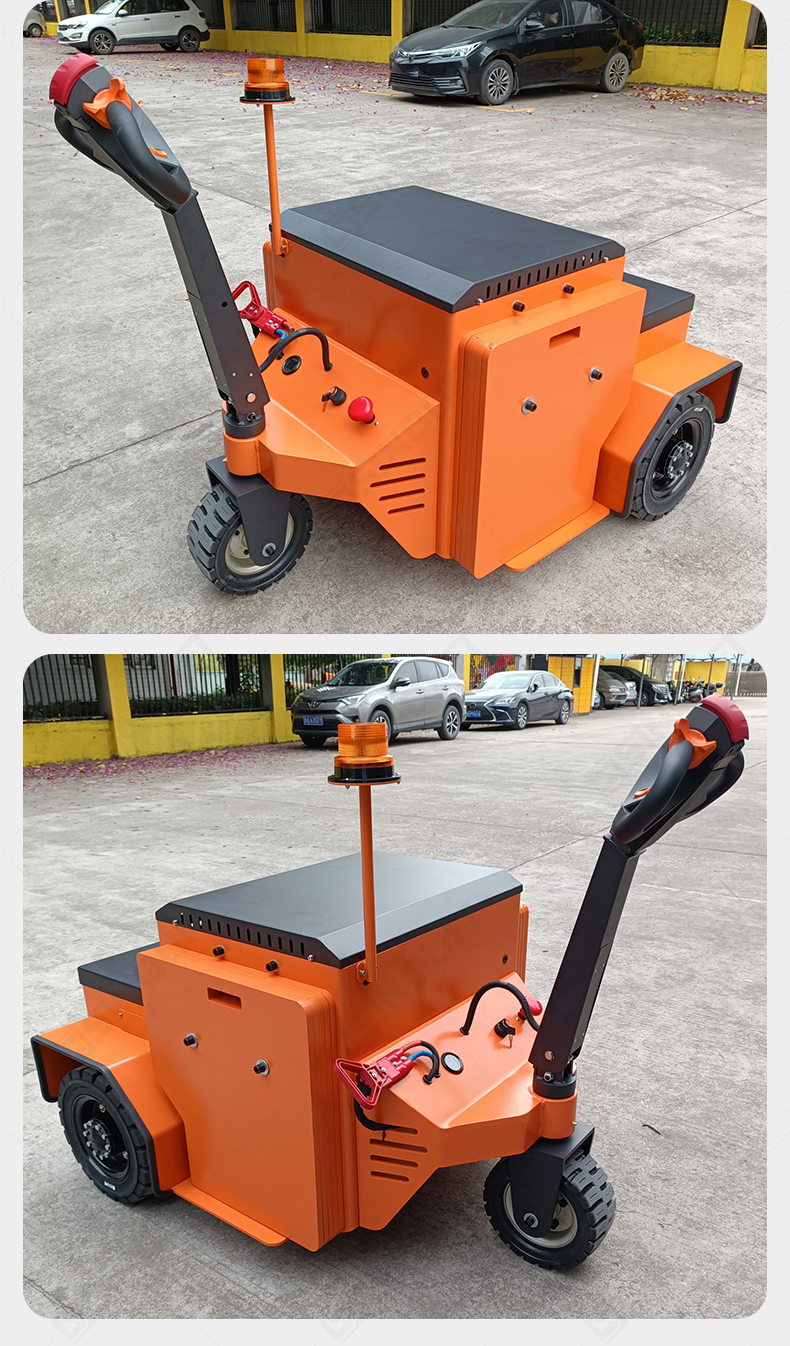

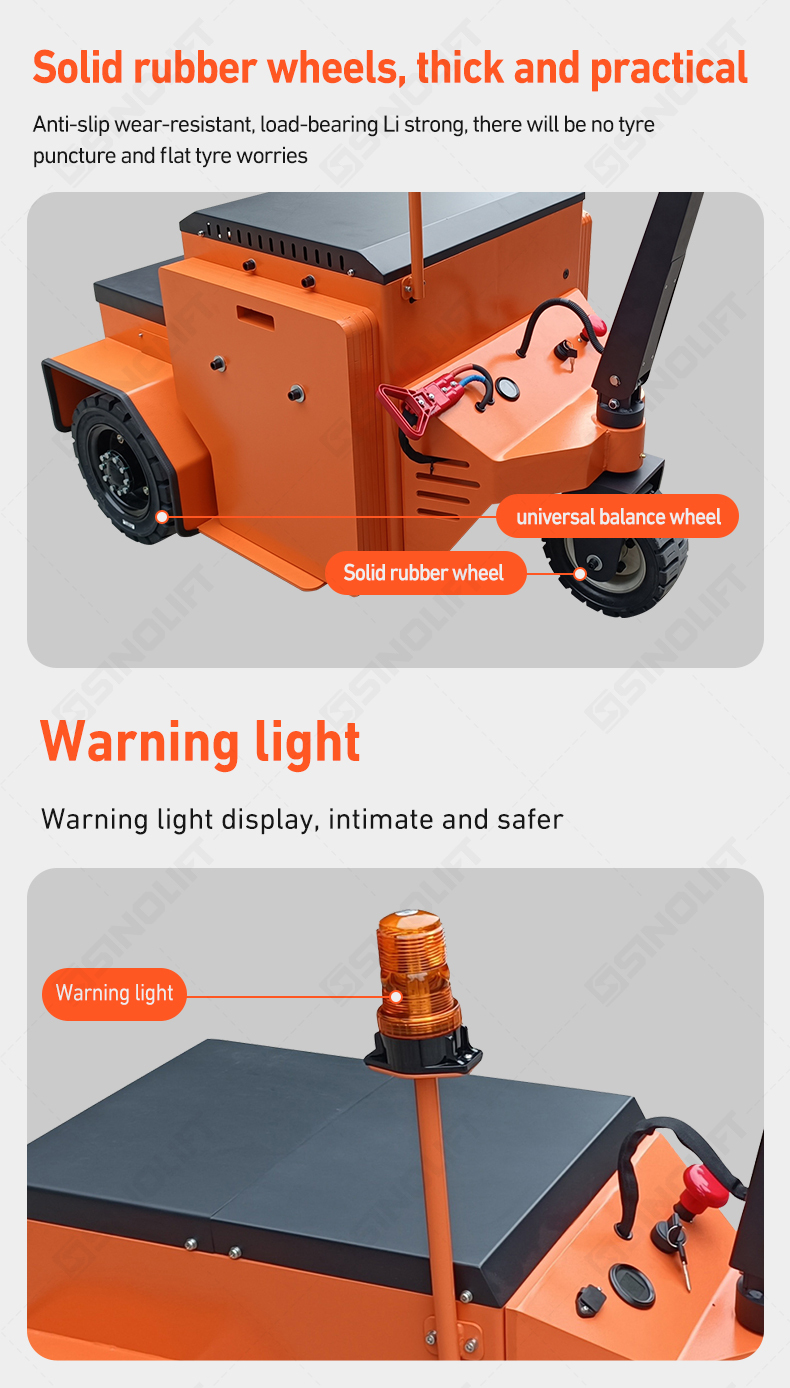

sinolift ML1500 airport Strong stability electric tow tractor Images
